2007 Chevrolet Silverado Detailed Finite Element Model
Version 3e, released Download Silverado zip 26.6 MB →
Vehicle Description
| VIN | 2GCEC13C7 |
|---|---|
| Body Type | 4-Door crew cab short box pick-up truck |
| Weight | 2,337 kg (5,152 lb) |
| Engine Type | 4.8L V8 |
| Transmission | M30 4 speed Automatic |
| Tire Size | P245/70R17 |
Version 3 Model Details
| Elements | 963,474 |
|---|---|
| Nodes | 979,598 |
| Parts | 721 |
| Features | Structural components details, Suspension system details, Uniform mesh throughout (to support multi mode impacts) |
References
- 2007 Chevrolet Silverado Finite Element Model Validation Detail Mesh, Presentation | doi:10.13021/G8F312
- Extended Validation of the Finite Element Model for the 2007 Chevrolet Silverado Pick-Up Truck, Working Paper | NCAC 2012‒W‒003
- Comparison of the Crash Test and Simulation of an Angle Impact of a 2007 Chevrolet Silverado Pick-Up Truck into a New Jersey-Shaped Concrete Barrier for MASH Conditions, Working Paper | NCAC 2010‒W‒001
- Development & Initial Validation of a 2007 Chevrolet Silverado Finite Element Model, Tech Summary | NCAC 2009‒T‒005
- Modeling, Testing, and Validation of the 2007 Chevy Silverado Finite Element Model, Working Paper | NCAC 2009‒W‒005
- Component and Full-scale Tests of the 2007 Chevrolet Silverado Suspension System, Report | NCAC 2009‒R‒004

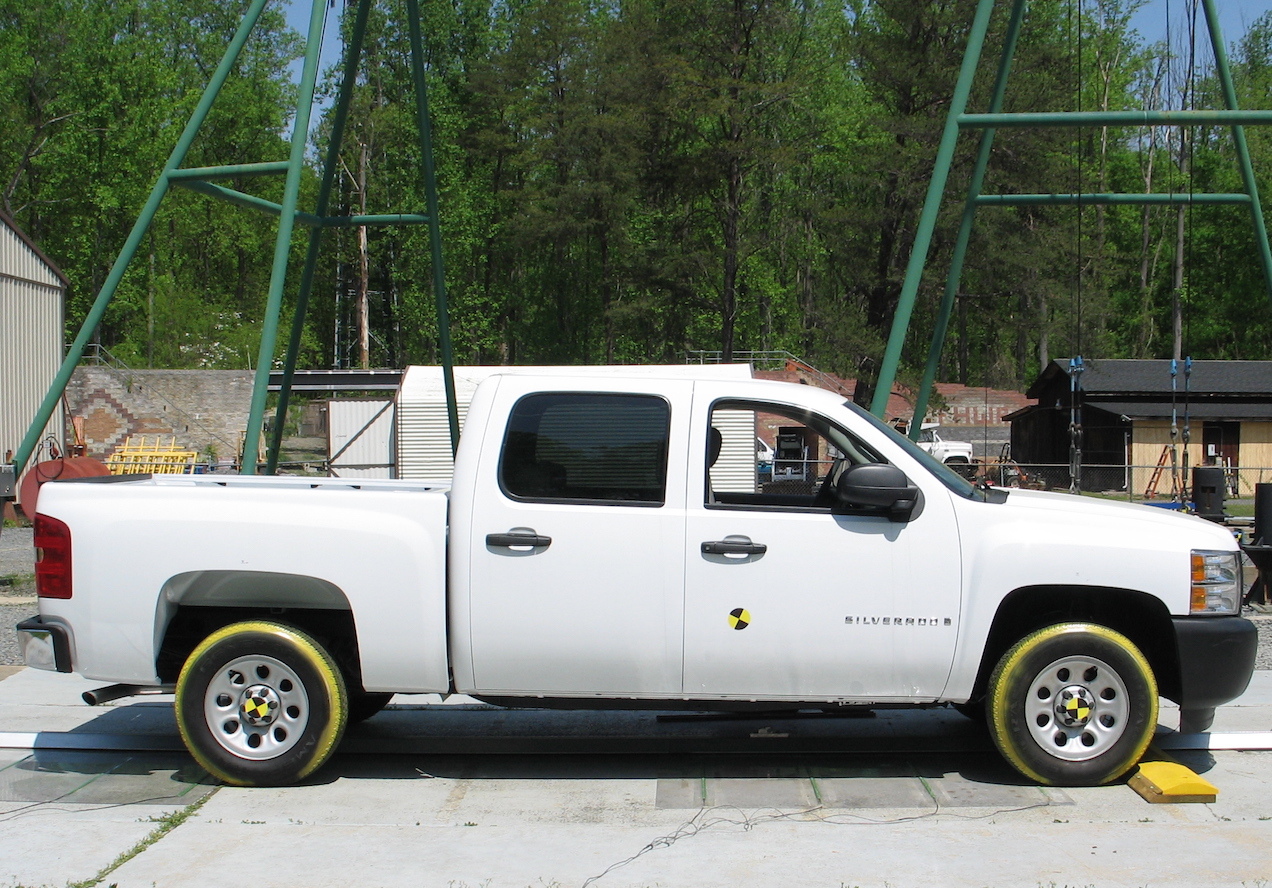

This model is computer representation of a 2007 Chevrolet Silverado pick-up truck for use in crash simulations. It was developed through a reverse engineering process by Center for Collision Safety and Analysis researchers under a contract with the Federal Highway Administration.
The model was validated against several full-scale crash tests. It is expected to support current and future research related to occupant risk and vehicle compatibility, as well as barrier crash evaluation, research, and development efforts. The model conforms to the Manual for Assessing Safety Hardware requirements for a 2270P test vehicle.
Initial verification and validation of the model included completeness checks, comparisons of actual and model inertial properties, suspension response tests, and comparisons to actual frontal crash test data.
Subsequent efforts compared simulation results to other available crash tests.
The resulting detailed finite element vehicle model has about 1 million elements. It includes details of the structural and drivetrain components. The model was constructed to include full functional capabilities of the suspension and steering subsystems allowing for non-level terrain analyses.
Average element size of the model is 6–8 mm with a minimum size of 5 mm. Typical simulation time step is 1.0 µs. The model was created for use with the LS-DYNA nonlinear explicit finite element code. Approximate computation time to run a 200 ms simulation using 16 cores is .
Related stories and links
- D. Marzougui, C.D. Kan, R. Samaha, C. Cui, L. Nix, “Extended Validation of the Finite Element Model for the 2007 Chevrolet Silverado Pick‐Up Truck (MASH 2270kg Vehicle),” 13‒2565, presented at the Transportation Research Board 92nd Annual Meeting, Washington, D.C., –
- S. Patel, A. Prasad, P. Mohan, “NHTSA’s Recent Test Program on Vehicle Compatibility,” 09‒0416, ESV 21, Stuttgart, Germany, –
2007 Chevrolet Silverado Coarse Finite Element Model
Version 3a, released Download Silverado zip 7.4 MB →
Vehicle Description
| VIN | 2GCEC13C7 |
|---|---|
| Body Type | 4-Door crew cab short box pick-up truck |
| Weight | 2,337 kg (5,152 lb) |
| Engine Type | 4.8L V8 |
| Transmission | M30 4 speed Automatic |
| Tire Size | P245/70R17 |
Version 3 Model Details
| Elements | 251,400 |
|---|---|
| Nodes | 262,061 |
| Parts | 603 |
| Features | Structural components details, Suspension system details, Uniform mesh throughout (to support multi mode impacts) |
References
- 2007 Chevrolet Silverado Finite Element Model Validation Coarse Mesh, Presentation | doi:10.13021/G8SC8K
- Component and Full-scale Tests of the 2007 Chevrolet Silverado Suspension System, Report | NCAC 2009‒R‒004
This model is computer representation of a 2007 Chevrolet Silverado pick-up truck for use in crash simulations. It was developed through a reverse engineering process by Center for Collision Safety and Analysis researchers under a contract with the Federal Highway Administration.
The model was validated against several full-scale crash tests. It is expected to support current and future research related to occupant risk and vehicle compatibility, as well as barrier crash evaluation, research, and development efforts. The model conforms to the Manual for Assessing Safety Hardware requirements for a 2270P test vehicle.
Initial verification and validation of the model included completeness checks, comparisons of actual and model inertial properties, suspension response tests, and comparisons to actual frontal crash test data.
Subsequent efforts compared simulation results to other available crash tests.
The resulting coarse finite element vehicle model has about 250 thousand elements. It includes details of the structural and drivetrain components. The model was constructed to include full functional capabilities of the suspension and steering subsystems allowing for non-level terrain analyses.
Average element size of the model is 15–25 mm with a minimum size of 7 mm. Typical simulation time step is 2.0 µs. The model was created for use with the LS-DYNA nonlinear explicit finite element code. Approximate computation time to run a 200 ms simulation using 16 cores is less than .
Related stories and links
- D. Marzougui, C.D. Kan, R. Samaha, C. Cui, L. Nix, “Extended Validation of the Finite Element Model for the 2007 Chevrolet Silverado Pick‐Up Truck (MASH 2270kg Vehicle),” 13‒2565, presented at the Transportation Research Board 92nd Annual Meeting, Washington, D.C., –
→ SHA384(2007-chevrolet-silverado-detailed-v3e.zip)= 662312f50a80b7c2e42fa0f5845ea8fa89e275302da1a824
→ SHA384(2007-chevrolet-silverado-coarse-v3a.zip)= 1874a7fc4709082d80d7c1d4ae2385202e69275568e1f2fe
