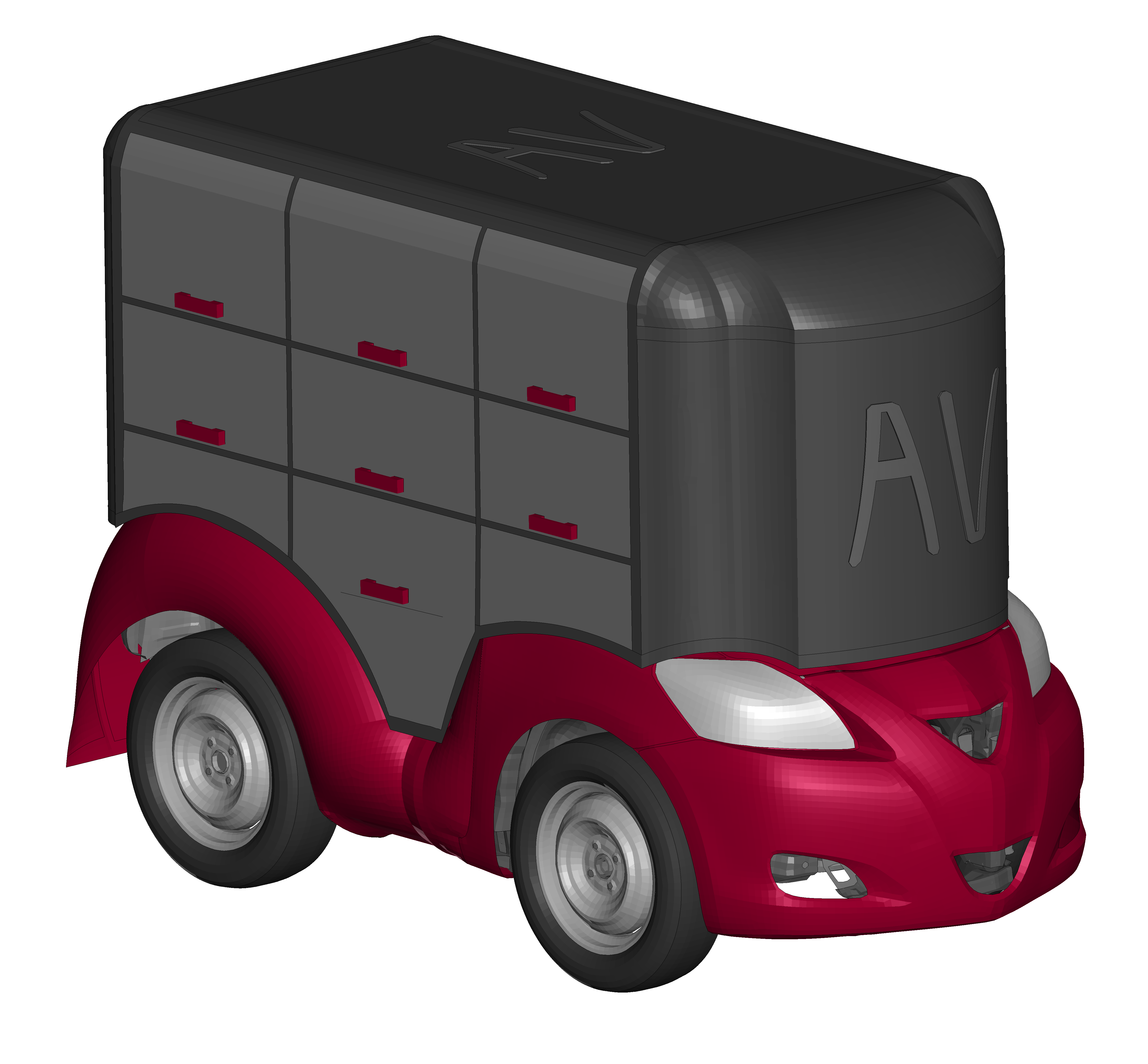

2019 Generic Small-size ADS Vehicle Model
Version 1, released Download Small-size ADS zip 5.5 MB
Version 1 Model Details
| Elements | 212,487 |
|---|---|
| Nodes | 220,478 |
| Parts | 319 |
| Features | Structural components details, Interior component details, Suspension system details, Uniform mesh throughout (multi mode impacts) |
This model has been developed by the Center for Collision Safety and Analysis at George Mason University under a contract with the National Highway Traffic Safety Administration. The model is based on a validated model of a 2010 Toyota Yaris and a conceptual design of a small-size Automated Driving System (ADS) vehicle. The resulting generic small-size ADS vehicle model has NOT been validated against test data.
References
- 2019 Generic Small-size Automated Driving System (ADS)
Vehicle: Finite Element Model Development, Tech Summary | doi:10.13021/harc-m265

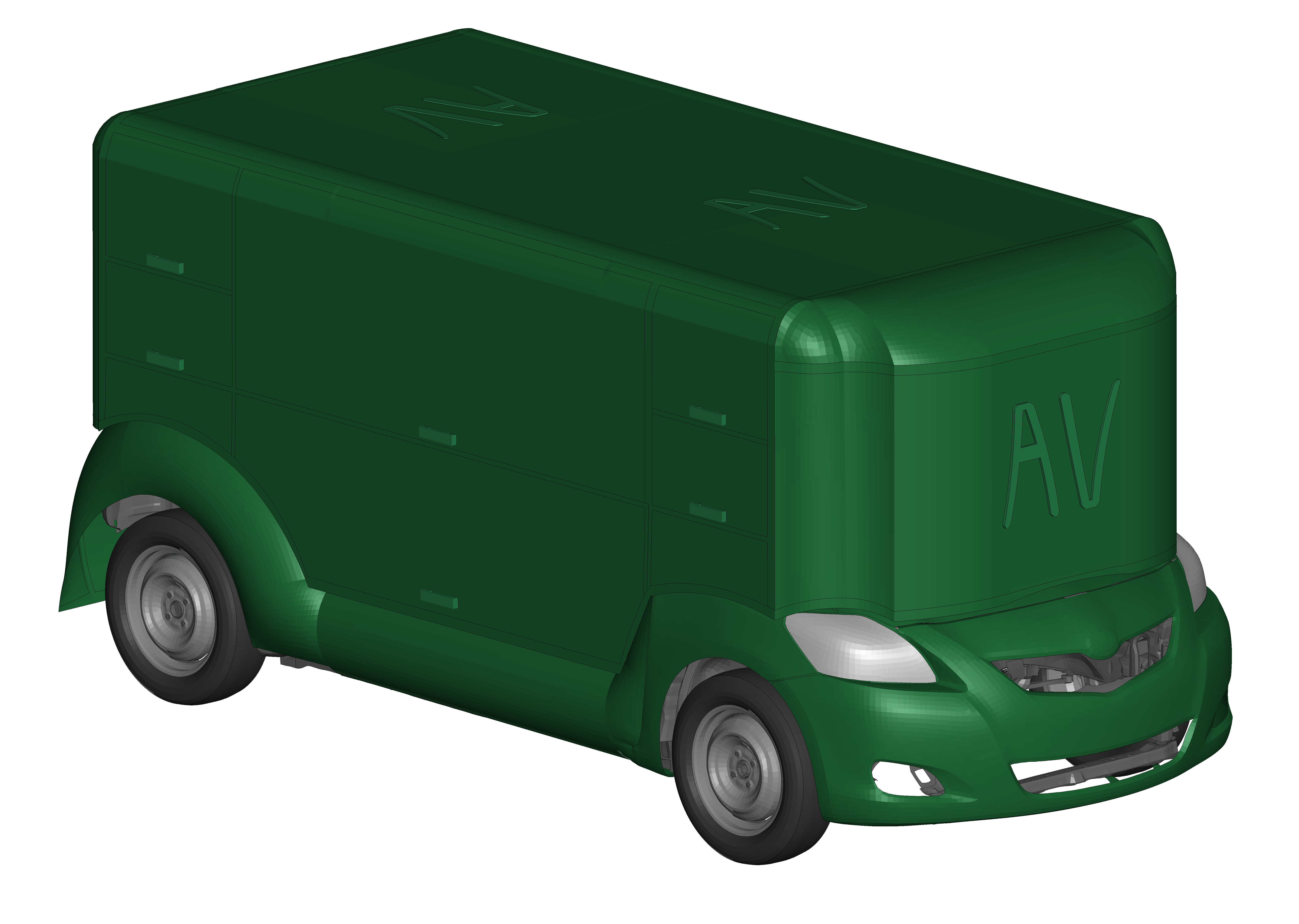

2019 Generic Mid-size ADS Vehicle Model
Version 1, released Download Mid-size ADS zip 10.7 MB
Version 1 Model Details
| Elements | 439,303 |
|---|---|
| Nodes | 456,453 |
| Parts | 371 |
| Features | Structural components details, Interior component details, Suspension system details, Uniform mesh throughout (multi mode impacts) |
This model has been developed by the Center for Collision Safety and Analysis at George Mason University under a contract with the National Highway Traffic Safety Administration. The model is based on a validated model of a 2010 Toyota Yaris and a conceptual design of a mid-size Automated Driving System (ADS) vehicle. The resulting generic mid-size ADS vehicle model has NOT been validated against test data.
References
- 2019 Generic Mid-size Automated Driving System (ADS)
Vehicle: Finite Element Model Development, Tech Summary | doi:10.13021/gfg4-8w64

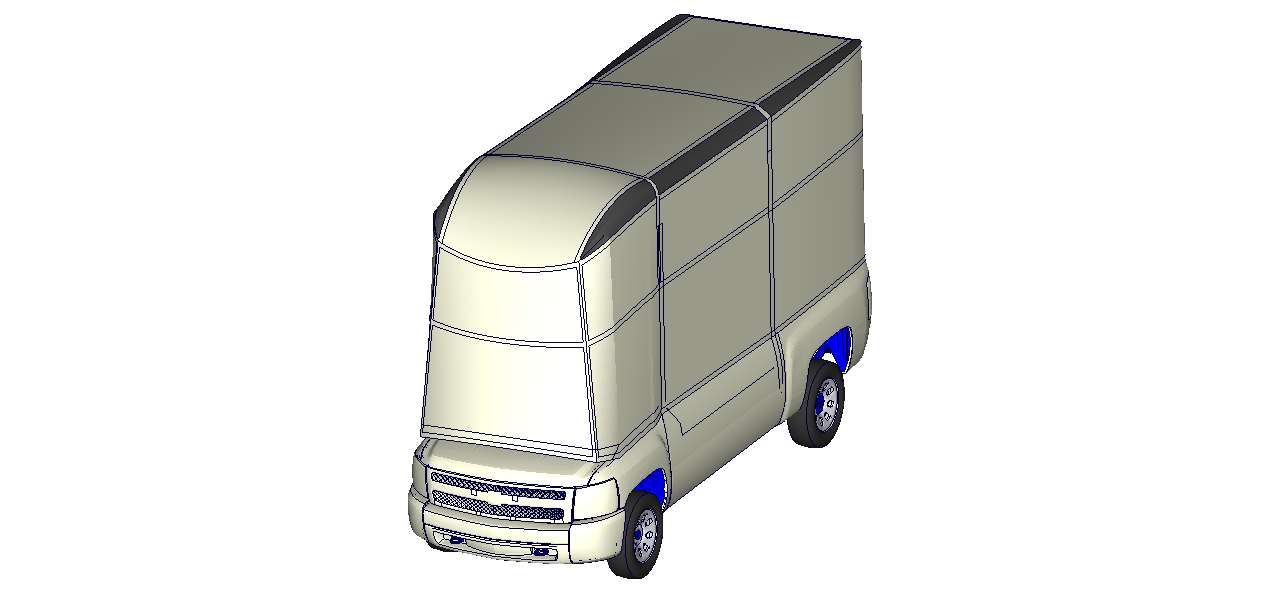

2019 Generic Large-size ADS Vehicle Model
Version 1, released Download Large-size ADS zip 7.6 MB
Version 1 Model Details
| Elements | 311,987 |
|---|---|
| Nodes | 308,166 |
| Parts | 414 |
| Features | Structural components details, Interior component details, Suspension system details, Uniform mesh throughout (multi mode impacts) |
This model has been developed by the Center for Collision Safety and Analysis at George Mason University under a contract with the National Highway Traffic Safety Administration. The model is based on a validated model of a 2014 Chevrolet Silverado and a conceptual design of a large-size Automated Driving System (ADS) vehicle. The resulting generic large-size ADS vehicle model has NOT been validated against test data.
References
- 2019 Generic Large Automated Driving System (ADS)
Vehicle: Finite Element Model Development, Tech Summary | doi:10.13021/xq4b-vj11

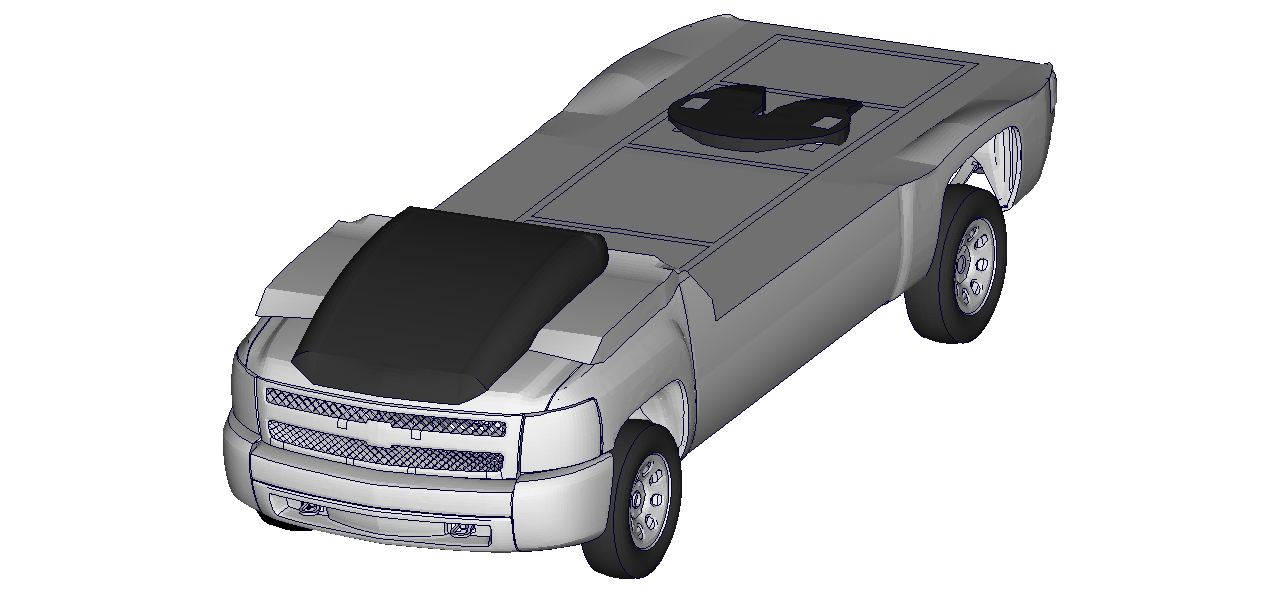

2019 Generic Tractor ADS Vehicle Model
Version 1, released Download Tractor ADS zip 5.0 MB
Version 1 Model Details
| Elements | 308,166 |
|---|---|
| Nodes | 192,049 |
| Parts | 400 |
| Features | Structural components details, Interior component details, Suspension system details, Uniform mesh throughout (multi mode impacts) |
This model has been developed by the Center for Collision Safety and Analysis at George Mason University under a contract with the National Highway Traffic Safety Administration. The model is based on a validated model of a 2014 Chevrolet Silverado and a conceptual design of a large-size Automated Driving System (ADS) vehicle. The resulting generic large-size ADS vehicle model has NOT been validated against test data.
References
- 2019 Generic Tractor Automated Driving System (ADS)
Vehicle: Finite Element Model Development, Tech Summary | doi:10.13021/xq4b-vj11
